The infectious bronchitis virus (IBV), a member of the Gammacoronavirus genus, is a major pathogen affecting poultry worldwide. It causes a highly contagious respiratory disease that results in severe economic losses due to reduced egg production, poor growth, and secondary infections. Like other coronaviruses, IBV possesses a large single-stranded, positive-sense RNA genome. Efficient replication and transcription of this genome rely on several viral nonstructural proteins, among which Nsp13 helicase plays a critical and conserved role.
Helicases are ATP-dependent molecular motors that unwind duplex nucleic acids, separating the strands to facilitate replication, repair, or transcription. However, emerging research reveals that IBV Nsp13 is not limited to unwinding activity it also promotes reannealing of complementary single-stranded nucleic acids, a property that adds a new dimension to our understanding of coronavirus RNA metabolism.
Structural Overview of Nsp13 Helicase
Structural Overview of Nsp13 Helicase

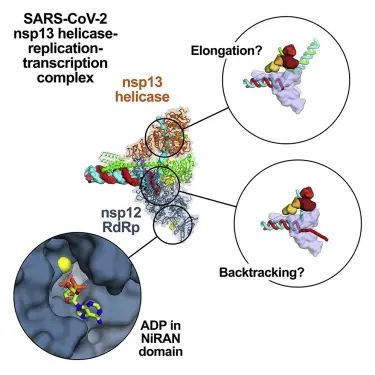

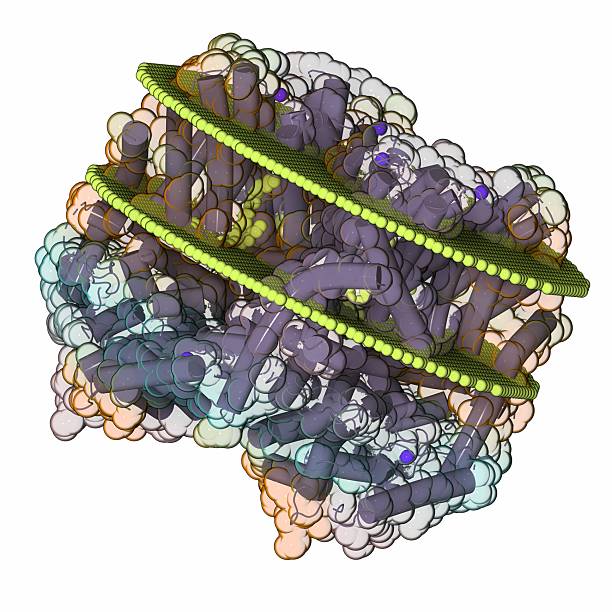

The nonstructural protein 13 (Nsp13) helicase is one of the most conserved and multifunctional enzymes encoded by coronaviruses, including the Infectious Bronchitis Virus (IBV). As a member of the superfamily 1B helicases (SF1B), Nsp13 is a 5′→3′ ATP-dependent helicase that couples energy from ATP hydrolysis to the mechanical unwinding of double-stranded nucleic acids. Its intricate architecture enables it to interact dynamically with RNA, DNA, and other components of the viral replication machinery, making it a central player in coronavirus genome maintenance.
Overall Architecture
Nsp13 is a relatively large protein (~600 amino acids, ~67 kDa) and displays a modular domain organization composed of five distinct regions that act in coordination (Figure 1):
- Zinc-Binding Domain (ZBD) – residues 1–100
- Stalk Domain – residues ~101–150
- 1B Domain – residues ~151–260
- RecA-like Domain 1A – residues ~261–480
- RecA-like Domain 2A – residues ~481–601

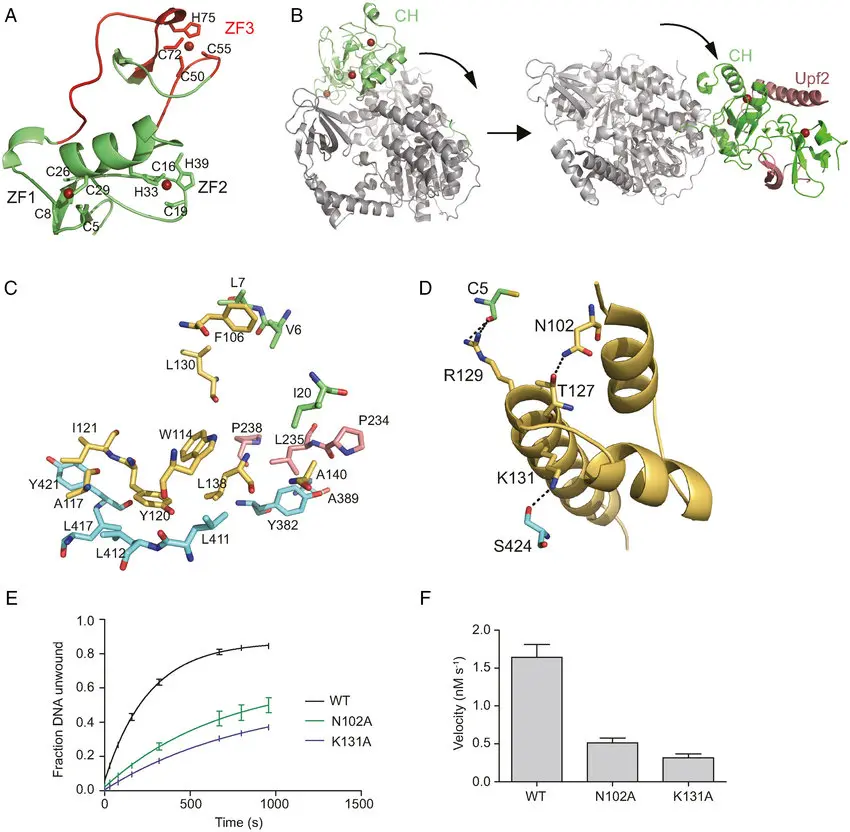

Zinc-Binding Domain (ZBD)
Located at the N-terminus, the Zinc-Binding Domain plays both structural and regulatory roles. It contains three zinc finger motifs coordinated by conserved cysteine and histidine residues (Cys–His clusters), which provide stability and rigidity to the protein’s overall conformation.
Functions:
- Acts as a scaffold to maintain proper folding of Nsp13.
- Mediates protein-protein interactions within the replication–transcription complex (RTC), particularly with Nsp12 (RNA-dependent RNA polymerase) and Nsp8.
- May contribute to viral RNA recognition and binding through electrostatic interactions.
Stalk Domain
The stalk domain connects the ZBD to the helicase core. Despite its relatively small size, it acts as a flexible hinge, allowing conformational transitions between the upper (ZBD) and lower (1A–2A) domains during catalysis.
Key features:
- Composed of several α-helices that provide mechanical linkage.
- Facilitates movement transmission from ATP hydrolysis in the core to the nucleic acid-binding surface.
- May also play a role in regulating inter-domain communication, allowing Nsp13 to toggle between its unwinding and annealing modes.
RecA-like Domains (1A and 2A): The Catalytic Core
The 1A and 2A RecA-like domains form the functional heart of Nsp13. These two globular domains contain the Walker A (P-loop) and Walker B motifs, which are essential for ATP binding and hydrolysis, as well as several helicase signature motifs (I–VI) characteristic of SF1B helicases.
Key motifs and their functions:
- Motif I (Walker A / P-loop): Binds ATP’s phosphate groups via a conserved lysine residue.
- Motif II (Walker B): Coordinates Mg²⁺ and facilitates hydrolysis of ATP to ADP + Pi.
- Motif III & IV: Couple ATP hydrolysis to mechanical translocation along nucleic acids.
- Motif V & VI: Participate in nucleic acid recognition and binding, determining directionality (5′→3′).
1B Domain
The 1B domain sits between the stalk and the two RecA-like domains. It contributes to the formation of the nucleic acid-binding groove, a central channel that accommodates single- or double-stranded RNA/DNA during unwinding.
Functional insights:
- Provides structural support for RNA or DNA binding by stabilizing the backbone.
- Participates in interactions with other viral nsps, helping anchor the helicase within the replication-transcription complex (RTC).
- Plays a potential role in substrate selection, determining whether Nsp13 engages in unwinding or annealing.
Structural Conservation and Evolutionary Significance
Sequence alignment and comparative modeling indicate that IBV Nsp13 shares >60% structural homology with SARS-CoV and SARS-CoV-2 Nsp13 helicases. The catalytic residues, zinc-coordinating cysteines, and RNA-binding motifs are highly conserved, emphasizing their evolutionary importance in coronavirus replication.
Interdomain Coordination and Conformational Dynamics
The coordination among the five domains is critical for Nsp13’s dual functionality (unwinding and annealing).
- The ZBD–stalk interface acts as a pivot during domain movement.
- The 1B domain serves as a dynamic gate controlling nucleic acid entry and exit.
- The 1A–2A domains perform the ATP-driven conformational cycle that physically manipulates the substrate.
Mechanistic Insights: Unwinding vs. Annealing
Unwinding: The Canonical Helicase Activity
Unwinding is the classical role of helicases, and for Nsp13, it is vital for viral RNA replication. The process involves:
Stepwise Mechanism
- Substrate Recognition: Nsp13 binds to double-stranded RNA (dsRNA) or DNA, recognizing the 5′ end of the strand to establish directionality (5′ → 3′).
- ATP Binding: ATP molecules bind to the RecA-like 1A and 2A domains, inducing a conformational “closing” of these domains around the nucleic acid.
- Translocation and Strand Separation: Hydrolysis of ATP to ADP + Pi triggers structural changes, causing Nsp13 to pull one strand through its central channel, effectively separating the duplex.
- Stepwise Advancement: Nsp13 repeats this cycle in a ratchet-like fashion, moving along the RNA strand and progressively unwinding the duplex.
Annealing: The Opposite but Complementary Activity
Contrary to unwinding, Nsp13 also demonstrates the ability to re-anneal complementary single-stranded nucleic acids (ssRNA or ssDNA) under specific conditions.
Mechanistic Features
- Recognition of Complementary Strands: Nsp13 binds two single-stranded nucleic acids with complementary sequences.
- Stabilization: Instead of separating the strands, Nsp13 uses its nucleic acid-binding groove (mainly 1B + RecA domains) to align the strands precisely.
- Facilitating Annealing: Through minor conformational shifts, Nsp13 promotes base-pair formation, allowing the complementary strands to hybridize into a duplex.
- Energy Considerations: Annealing can occur without ATP hydrolysis or under low ATP conditions, suggesting that this activity is energetically less demanding than unwinding.
Implications for Antiviral Strategies
Understanding the mechanistic duality of Nsp13 has practical implications:
- Drugs targeting ATP hydrolysis could inhibit the unwinding function, halting replication.
- Compounds that block nucleic acid binding may disrupt both unwinding and annealing, impairing genome stabilization.
- Because these dual functions are conserved among coronaviruses, inhibitors could offer broad-spectrum antiviral activity.
Balancing the Two Functions
The dual activities of Nsp13 unwinding and annealing appear contradictory but are highly complementary:
| Function | Trigger | Purpose | Domain Involvement |
|---|---|---|---|
| Unwinding | ATP-bound, duplex substrate | Expose single strands for replication/transcription | RecA 1A/2A, 1B, ZBD-Stalk |
| Annealing | Low ATP or complementary ssRNA | Stabilize genome, repair RNA, regulate secondary structure | 1B, RecA 1A/2A, flexible stalk |
Functional Implications in the Viral Life Cycle
Genome replication:
Its unwinding activity enables the viral polymerase complex to read RNA templates efficiently.
RNA structure maintenance:
The annealing function likely stabilizes RNA secondary structures or helps the virus reassemble functional RNA after partial degradation.
Replication restart:
By promoting reannealing, Nsp13 may assist in restarting stalled replication forks caused by structural obstacles or cellular stress.

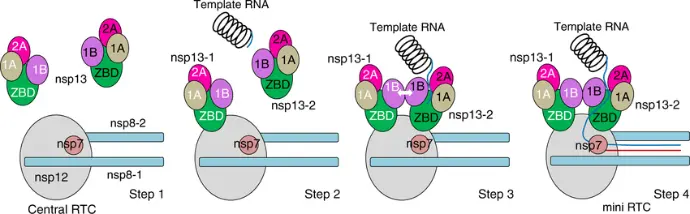

Coordination with other viral proteins:

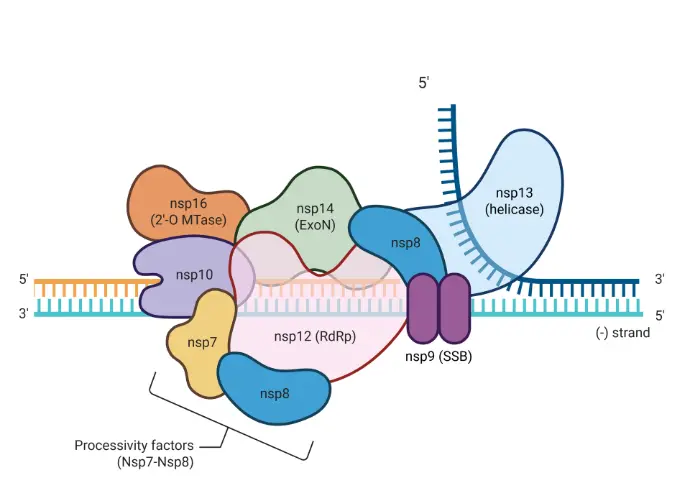

Nsp13 interacts with proteins such as Nsp12 (RdRp) and Nsp14 (exoribonuclease), coordinating multiple steps in RNA synthesis and proofreading.
Therapeutic Potential: A Target for Antiviral Design
Because of its structural conservation and essential role, Nsp13 represents a high-value target for antiviral therapy. Inhibitors that disrupt its ATPase or helicase functions could effectively halt viral replication at multiple stages.

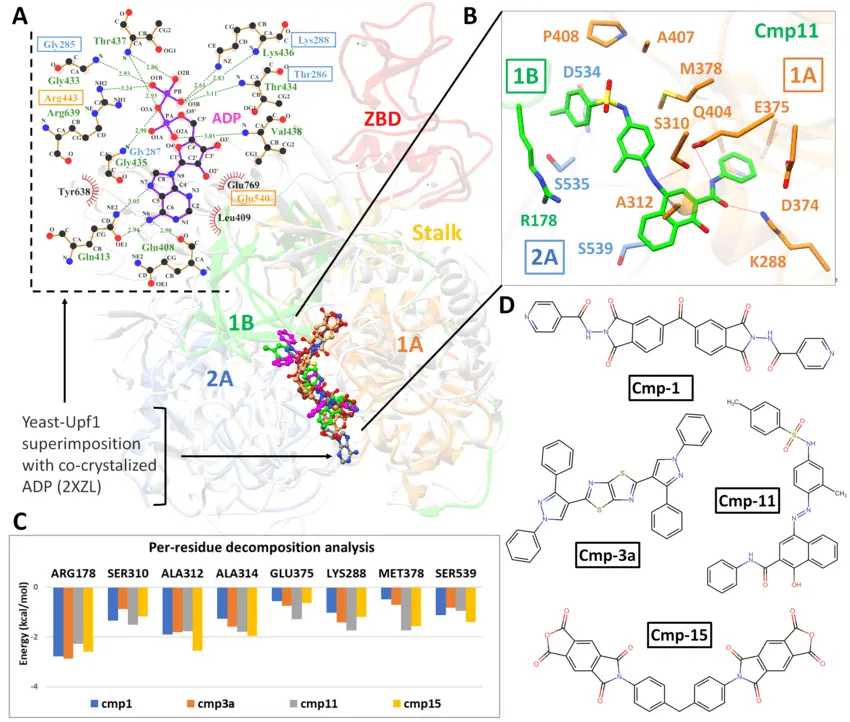

Recent drug design efforts are focusing on small molecules that:
- Interfere with ATP binding, preventing the energy cycle that drives unwinding.
- Block the nucleic acid-binding groove, hindering both unwinding and annealing.
- Destabilize the inter-domain communication between the zinc-binding and catalytic domains.
Moreover, since Nsp13 is conserved across coronaviruses including SARS-CoV, MERS-CoV, and SARS-CoV-2—such inhibitors may exhibit broad-spectrum antiviral potential, offering protection beyond avian coronaviruses.
